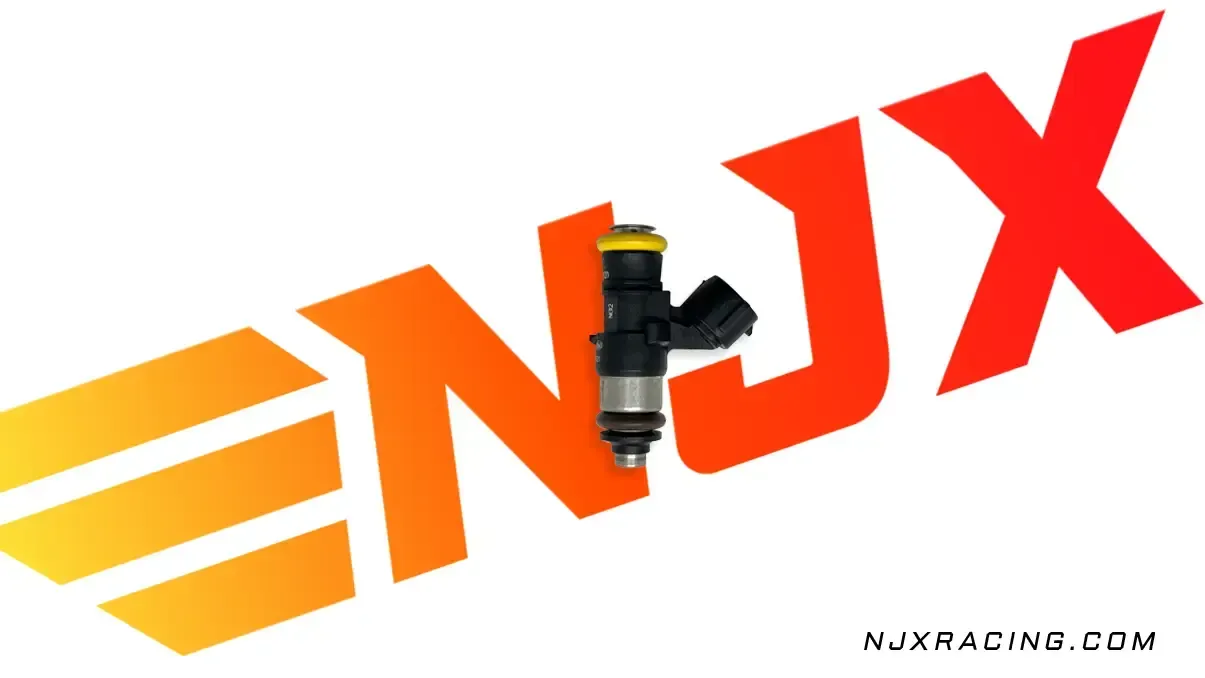

210lb Denso/Sumitomo Injector - Individual

NJX Racing 210lb 2200cc High-Performance Fuel Injectors (Model No. 0280158821) are the ultimate solution for a broad range of engine configurations including 2-rotor, 3-rotor, 4-cylinder, 6-cylinder, and 8-cylinder setups.

Individual Injectors are unable to be flow matched.

Product Details:

• Injector Type: NJX Racing 210lb 2200cc High-Performance Injector

Features & Specifications:

• Response Time: Fast, with robust design
• Impedance: High, 9.1 Ohms
• Dead Time: 0.45ms at 14 volts
• Flow Rates: Efficient across a range of pressures; at 43.5 PSI, they flow 2200 cc/min (210 lb/hr), scaling up to 3350 cc/min (320 lb/hr) at 101.5 PSI.
• Compatibility: Fully compatible with alternate fuels, alcohol, and E85. Not suitable for fuels with MTBE Oxygenate Content.
• Design: Compact with excellent flow patterns, these injectors are ideal for turbocharged and supercharged applications requiring high fuel pressure.
• Injector Dimensions: Length (O-Ring to O-Ring): 1.5 inches / 37.5 mm, Diameter: 16mm, O-Ring: 14.5mm Viton.

Trust NJX Racing for unmatched quality and performance, meticulously verified on our own flow benches.
